MAX-FLO Metal Series

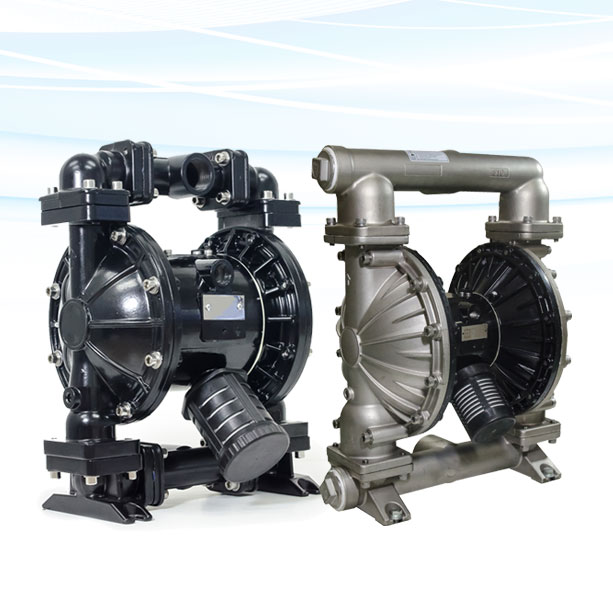

The MAX-FLO Series Metal AODD Pump is an innovative and affordable series catered for the ever-growing industry. This product comes in two categories; Stainless Steel (SUS316) and Aluminium.
While offering the standard corrosion resistance, formability, strength, and ease of maintenance for which stainless steel is known, Stainless Steel (SUS316) offers superior resistance against corrosion by chlorides and acids at high temperature. On the other hand, Aluminium offers malleability, recyclability, resilience against fire, corrosion-resistant, and lower strength-to-weight ratio; thus making it highly durable in extreme environment.
Model Range
MAX-FLO 15
MAX-FLO 25
MAX-FLO 40
MAX-FLO 50
MAX-FLO 80
Specifications:
| Max flow (l/min): | 57 |
| Max head (m): | 84 |
| Max air inlet pressure (bar): | 8.4 |
| Max particle size (mm): | 2.5 |
| Suction lift (mwc): | Dry: 4 Wet: 7.6 |
| Fluid ports connection (inch): | 1/2” 3/4” BSP (T) |
| Air inlet ports (inch): | 3/8” BSP (T) |
| Weight (kg) | Aluminium: 4.5 Stainless steel: 7.5 |
